Arduino Compatible!

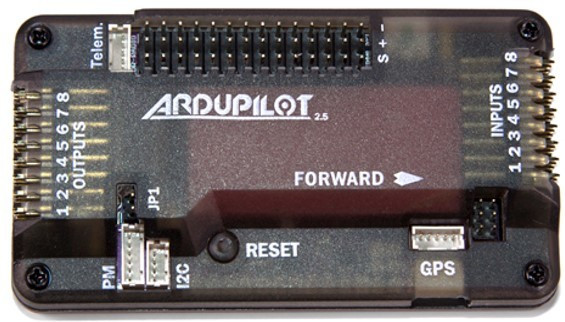

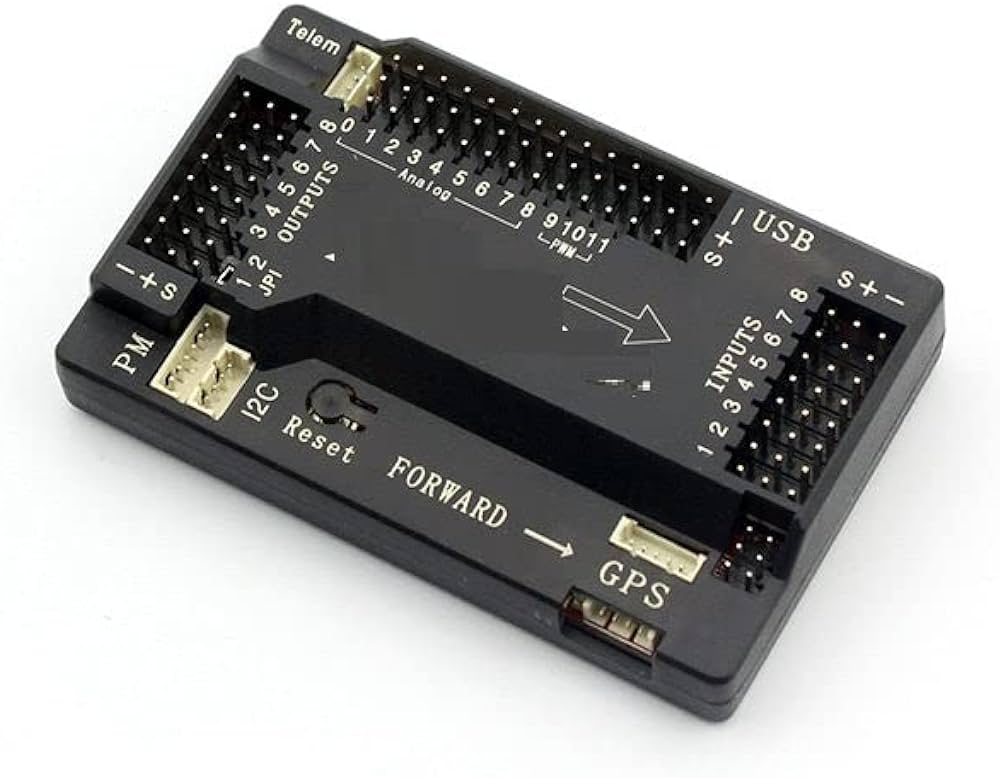

Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally

Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer

Onboard 4 MegaByte Dataflash chip for automatic datalogging

Optional off-board GPS, uBlox LEA-6H module with Compass.

One of the first open source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.

Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.

Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.

1. data transmission port

2. analog sensor port

3. autostability gimbal output

4. ATMEGA2560 SPI online programming port (be useful for optical flow sensor)

5. USB port

6. remote control input

7. function selection jumper

8. GPS port

9. 12C external compass port

10. ATMEGA32U2 SPI online programming port

11. multifunction configurable MUX port (OSD is the defaulted output)

12. current voltage port

13. ESC power supply selection jumper

14. ESC output port

Package Included:

1 x APM 2.8 Board with Protective Case

1 x set of Jumper cables
