Radiolink Mini Pix Flight Controller V1.2 FC for 3-6 Axis FPV Drone/Helicopter/Aircraft/Quad/Car/Boat, Auto Flight

What’s in the box

Mini Pix Flight Controller & USB Cable*1 & Wire for Receiver&RSSI*1 & OSD Connect Cable*1 & User Manual

Power Module(2-12S)*1 & Power Module Wire*1
Buzzer&Safety Switch*1 & Buzzer&Saftey Switch Wire*1
I2C Transfer Board*1 & I2C Transfer Board Wire*1
FC Status Indicate LED*1 & FC Status Indicate LED Wire*1

Mini Size as F4 The size is 39*39*12mm (1.54″*1.54″*0.47″, same size as F4), even though the mini racing drone can put it in. The weight includes all the wires just 39 gram, which lengthen the flight time.

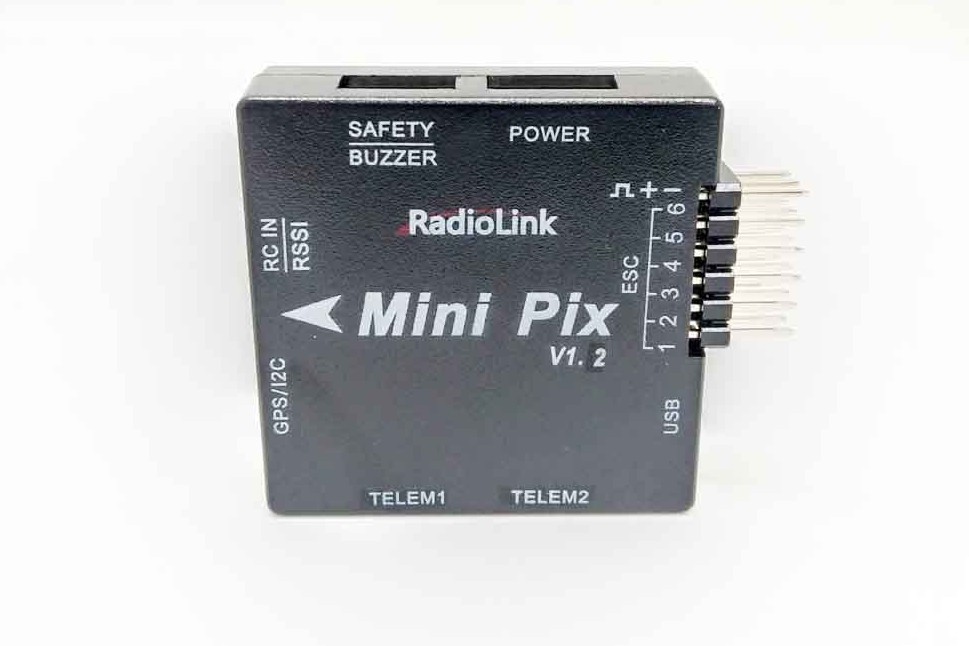

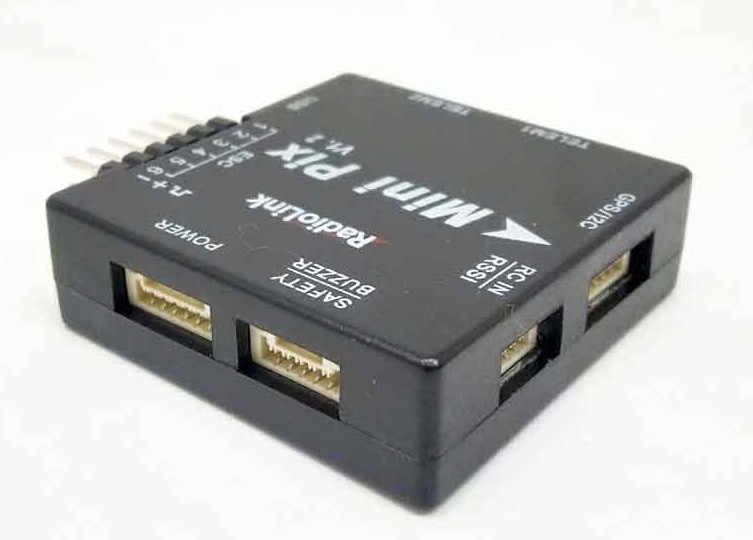

Mini Pix Ports

SAFETY/BUZZER: B+ B- 3.3V LED SAFETY POWER: GND GND VOLTAGE(up to 3.3V) CURRENT(up to 3.3V) VCC(5V) VCC(5V) RC IN/RSSI: VCC(5V) RC RSSI GND GPS/I2C: VCC(5V) TX(OUT 3.3V) RX(IN 3.3V) SCL(3.3V pullups) SDA(3.3 pullups) GND TELEM1: VCC(5V) TX(OUT 3.3V) RX(IN 3.3V) CTS(3.3V) RTS(3.3V) GND TELEM2: VCC(5V) TX(OUT 3.3V) RX(IN 3.3V) CTS(3.3V) RTS(3.3V) GND USB

Quality Assurance Radiolink took about six months to develop the Automation Software Testing System, ensure the quality of every function of every Mini Pix. As the only PIX manufacturer that realizes test automation from the sensor to the interface, testing efficiency of Radiolink is far more than traditional manual testing.

Package List for Mini Pix

Radiolink Mini Pixhawk	Drone, Flight Controller, Radiolink, Pixhawk

Reviews

There are no reviews yet.

Be the first to review “Radiolink Mini Pixhawk”
